| Home >> Products Center >> Hydraulic Press Brake |
| |

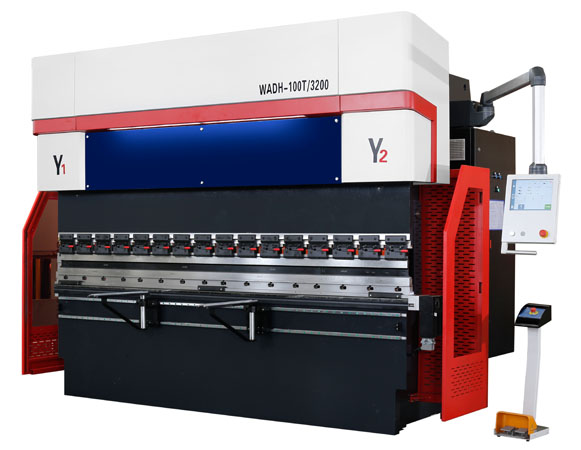

| WADH Series Hybrid Electric (Twin Electric-Servo Hybrid) CNC Press Brake |
| |
| The oil-electric hybrid drive bending machine is the latest top technology in the domestic bending machine. Compared with the electro-hydraulic synchronous bending machine, its hydraulic synchronization work depends on high-power dual servo pumps, and it does not need to rely on throttle valves to control the cylinder. The temperature of the hydraulic oil will not rise during work. To extend the working life of hydraulic system. Therefore, this model has all the advantages of electro hydraulic synchronization, as well as the characteristics of high efficiency, energy saving, silent sound, and durability. |
| |
 CNC Press Brake.jpg) |
| |
General Features |
1- The system consumes less energy with the servo motor.
2- Oil distribution according to needs has no restriction losss to achieve the evergy-saving indeed.
3- Low temperature-rise reduces the risk of oil leakage, which has better stability and can increase thw working life of hydraulic press system and oil cylinder.
4- Gear pump reduces working noise and sensitivity of oil cleanliness, low maintenance.
5- Precision of ram position or manufacture isn't lower than proportional valve control system, even higher. The ram repositioning precision is ±0.01mm, highest precision will be ±0.005mm.
6- The consumption of hydraulic oil reduces 70%.
7- The simple installation method can improve efficiency.
8- Flexible installation meets populous needs.
9- Better economic and higher performance-to-price ratio. |
| |
| |
| |
| |
| |
| |
| |
| |
| |
|
|
