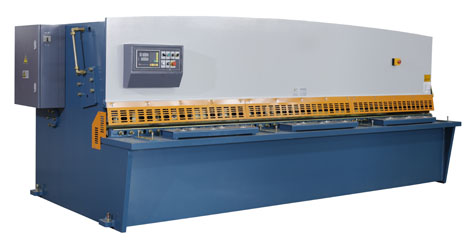

| QC12Y/K Series Hydraulic CNC Swing Shearing Machine |
| |
 |
| |
General Features |
Steel plate welded structure, hydraulic transmission, nitrogen cylinder return
Easy operation, reliable performance, beautiful appearance
The blade gap adjustment has a sign indication, the stepless adjustment is light and rapid
It has a light alignment device and can adjust the stroke of the top blade holder steplessly.
With hydraulic and electrical overload protection
Rolling material support ball will reduce the scratch and frictions as well
Adopt safety protection fence for the safety of workers
Straightness: ±0.10mm for 3m plate cutting
50% faster than others (30 times/min for our 4x2500 shear while others is only 12 times/min)
Blade material: 6CrW2Si
Heat treatment: 55°-60°HB
Low noise (70bd), gear pump drive by hydraulic
E21s, E200PS, DAC310S CNC system can be selected |
| |
| |
|
|
