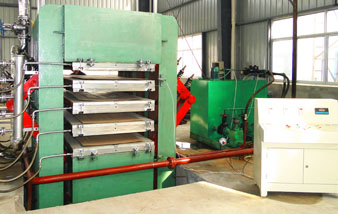

MDF Door Skin Hot Press |
| |
|
| |
|
| |

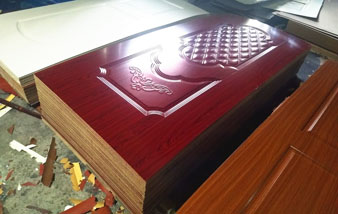

The door skin hot press machine is mainly used to do the molding and lamination with natural veneer and melamine paper, the pressure range of this machine: 900-1400T, layers: 3-5, each daylight need to be equipped with mould. |
| |
|
| |
|
| |
|
| |
 |
| |
|
| |
Features:
1) Machine frame all cut by CNC, after combined, high precision, stable performance, and high efficiency in production.
2) Controlling panel use imported brand electrical parts, PLC brand: Mitsubishi, Delta, Omron...etc for selection.
3) Machine is equipped with synchronizer, and can let hot platen stop at any poistion, stopping time is adjustable, it can reduce the pressed temperature diffference between top layer and bottom layer to ensure more high quality product.
4) Equipped with guiding device, ensure hot platens' position all same without any mistake, finally make upper mold and bottom mold 100% perfect combination.
5) Machine can be designed as transverse and longitudinal model, meet multi-dimensional needs. |
| |
|
| |
| Total pressure |
Dia of main cylinder |
Q'ty of main cylinder |
Board Size |
| 7000 (KN) |
280 (mm) |
6 |
3"×7" or customized |
| 9000 (KN) |
280 (mm) |
6 |
3"×7" or customized |
| 12000 (KN) |
320 (mm) |
6 |
3"×7" or customized |
| 14000 (KN) |
340 (mm) |
6 |
3"×7" or customized |
|
| |
|
|
|
|
| |
